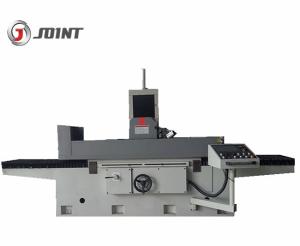

Hydraulic Auto surface grinding machine 5010MSI
1. Well-designed control panel with two-way rotate structure, make the operator getting suitable working position very easy, improve work efficiency.
2. Independent hydraulic station assembles with air cooling, running stably with small temperature rise, provide enough power for precision grinding.
3. Double walled column construction, provide high rigid support to the grinding spindle. Closed steel guard is equipped for protecting spindle motor and guide way,which make the column safe and beautiful.
4. Safe and reliable electrical control, safety interlocking protection system, be designed according to CE low tension electric requirement.
5. Adpoted Japanese Mitsubishi system, Japan.
| Model | 5010MSI |
| Table size | mm | 500*1000 |
Table
travel | Longitude (X) | mm | 1100 |
| Crossward (Y) | mm | 540 |
| Table side way | mm | Slide way |
| Max.distance from spindle center to working table | mm | 700 |
| Auto crossward feed | Kg | 0.1-10 |
| Crossward feed of hand wheel | 1 Rev | 5 |
| 1 Div | 0.02 |
| Auto vertical feed | | |
| Vertical feed of hand wheel | 1 Rev | 180 |
| 1 Div | 0.4 |
| Rotation Speed | rpm | 1450/50HZ
1750/60HZ |
| Grinding Wheel Size | mm | φ355×(20-40)×φ127 |
| Spindle motor | | 7.5*4 |
| Hydraulic motor | | 3*6 |
| Crossward driving motor | | 0.05*4 |
| Vertical driving motor | | 0.1*4 |
| Coolant pump motor | | 0.12*2 |
| Dimension (L*W*H) | mm | 2970*2200*2050 |
| Net Weight | Kg | 3900 |
Precision machinery manufacturer since 1995.
Your reliant expert on moulding and machining equipemnt!
Q1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart solutions for our customer, in order to increase efficiency.
Q3. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine’s bill of lading date. Extended warranty is available at the time of
purchase. Please contact your Joint sales representative for details.
